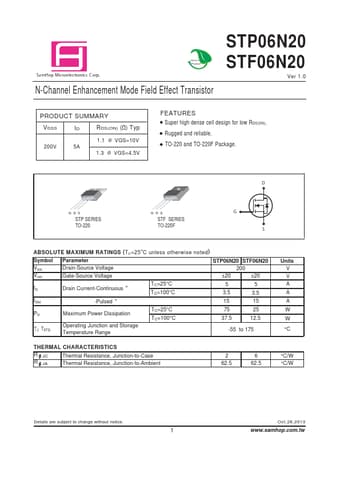

STP06N20
FEATURES
Super high dense cell design for low R DS(ON). Rugged and reliable. TO-220 and TO-220F Package.
STP SERIES TO-220
STF SERIES TO-220F
ABSOLUTE MAXIMUM RATINGS ( T C=25 °C unless otherwise noted ) Symbol VDS VGS ID IDM PD TJ, TSTG Parameter Drain-Source Voltage Gate-Source Voltage Drain Current-Continuous -Pulsed a a
STP06N20 STF06N20 200 ±20 ±20 TC=25°C TC=100°C TC=25°C TC=100°C 5 3.5 15 75 37.5 5 3.5 15 25 12.5
Units V V A A A W W °C
Maximum Power Dissipation Operating Junction and Storage Temperature Range
-55 to 175
THERMAL CHARACTERISTICS R JC Thermal Resistance, Junction-to-Case R JA Thermal Resistance, Junction-to-Ambient
2 62.5
6 62.5
°C/W °C/W
Details are subject to change without notice.
Oct,28,2013
.samhop..tw
STP06N20 STF06N20
Ver 1.0
ELECTRICAL CHARACTERISTICS ( T C=25 °C unless otherwise noted )
4 Symbol
Parameter
Conditions
Min
Typ
Max
Units
OFF CHARACTERISTICS Drain-Source Breakdown Voltage BVDSS Zero Gate...
