STP434S N-Channel Logic Level Enhancement Mode Field Effect Transistor

STP434S Description

www.DataSheet4U.com STB/P434S S a mHop Microelectronics C orp.Ver 1.0 N-Channel Logic Level Enhancement Mode Field Effect Transistor PRODUCT SUMMA.

STP434S Features

* Super high dense cell design for low R DS(ON). Rugged and reliable. TO-220 and TO-263 Package. ID 60A R DS(ON) (m Ω) Max 9.2 @ VGS=10V 11.5 @ VGS=4.5V D D G S G D S G STP SERIES TO-220 STB SERIES TO-263(DD-PAK) S ABSOLUTE MAXIMUM RATINGS ( T A=25 °C unless otherwise noted ) Symbol VDS VGS

📥 Download Datasheet

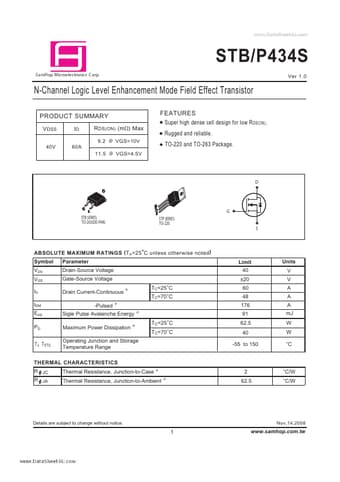

Preview of STP434S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP434S
Manufacturer
SamHop Microelectronics
File Size
244.75 KB
Datasheet
STP434S_SamHopMicroelectronics.pdf
Description
N-Channel Logic Level Enhancement Mode Field Effect Transistor
