SMD3L50F - MOS Controlled Diode

SMD3L50F Description

Sa mHop Microelectronics C orp.MOS Controlled Diode PRODUCT SUMMARY VRRM IO VF(MAX) @ 25°C IR(MAX) @ 25°C 50V 3A 0.51V 0.5mA SMD3L50FGreen Produ.

SMD3L50F Features

* Low Profile Design for Smart Phone Charger Ideal for SMT Mounting Low forward voltage drop High forward surge capability Excellent High Temperature Stability DO-221 ANODE PINS BOTTOMSIDE HEAT SINK Top View Bottom View ABSOLUTE MAXIMUM RATINGS (TA=25°C unless otherwise noted) Symbol Parameter

📥 Download Datasheet

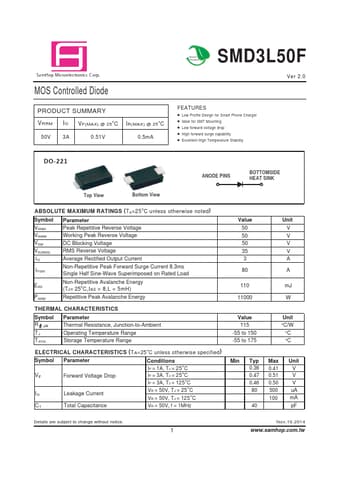

Preview of SMD3L50F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMD3L50F
Manufacturer
SamHop
File Size
63.01 KB
Datasheet
SMD3L50F-SamHop.pdf
Description
MOS Controlled Diode
