SA545

PULSE/DTMF SWITCHABLE DIALLERS WITH 10 REPERTORY MEMORIES

SA545 Features

* s SA545, SA54L5 PULSE/DTMF SWITCHABLE DIALLERS WITH 10 REPERTORY MEMORIES Selectable Loop-disconnect (Pulse) or DTMF (Tone) dialling modes 10 x 24 Digit Repertory Dialling Stores 24 Digit Last Number Redial (LNR) Selectable Interdigit Pause (IDP) 500ms or 800ms Operates with inexpensive single con

SA545 General Description

The SA545 family is pin compatible with SAMES SA541 family. Ordering Information SA54X5X/X Lock Option L : with (22 pin package) Blank : without (20 pin package) On-Hook Current Option 3 : 5µA @ 2.5V 6 : 1µA @ 2.5V 9 : 1µA @ 3V Blank : /1 : 4/18 MF Digits dialled after
*/# not stored All .

SA545 Datasheet (329.05 KB)

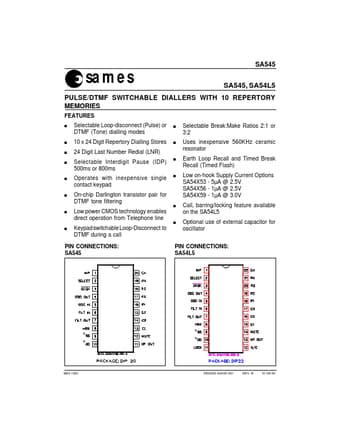

SA545 Datasheet Preview — Preview of SA545 PDF

Datasheet Details

Part number:

SA545

Manufacturer:

Sames

File Size:

329.05 KB

Description:

Pulse/dtmf switchable diallers with 10 repertory memories.
