SA589 - LD/DTMF SWITCHABLE DIALLERS WITH DEDICATED KEYS FOR 20 MEMORIES

SA589 Description

sames .
The SA589 family are keypad switchable LD/ DTMF dialler devices with a last number redial facility and twenty 24-digit memories each with its own dedi.

SA589 Features

* n n n n n SA589 LD/DTMF SWITCHABLE DIALLERS WITH DEDICATED KEYS FOR 20 MEMORIES Selectable Loop-Disconnect or DTMF Modes Keypad Switchable LD to DTMF 20 x 24-Digit Memories, (each with Dedicated Key) 24 Digit Last Number Redial Selectable Make/Break Ratios 2:1 and 3:2 n Uses Inexpensive 560kHz C

📥 Download Datasheet

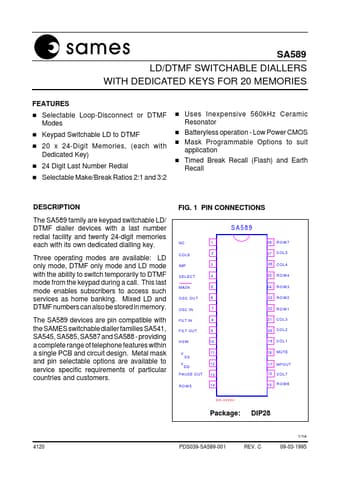

Preview of SA589 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA589
Manufacturer
Sames
File Size
94.12 KB
Datasheet
SA589_Sames.pdf
Description
LD/DTMF SWITCHABLE DIALLERS WITH DEDICATED KEYS FOR 20 MEMORIES
