SA58640 - Low-voltage mixer FM-IF

Product Overview

NXP Semiconductors

Datasheet Details

Part number	SA58640
Manufacturer	NXP Semiconductors
File Size	192.89 KB
Description	Low-voltage mixer FM-IF
Datasheet	SA58640 Datasheet

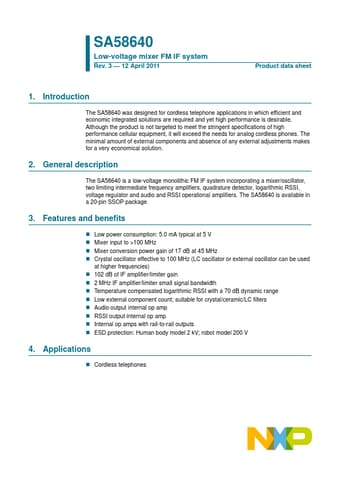

Additional preview pages of the SA58640 datasheet.

Product details

Description

The SA58640 is a low-voltage monolithic FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, logarithmic RSSI, voltage regulator and audio and RSSI operational amplifiers.

Features

Low power consumption: 5.0 mA typical at 5 V.
Mixer input to >100 MHz.
Mixer conversion power gain of 17 dB at 45 MHz.
Crystal oscillator effective to 100 MHz (LC oscillator or external oscillator can be used at higher frequencies).
102 dB of IF amplifier/limiter gain.
2 MHz IF amplifier/limiter small signal bandwidth.
Temperature compensated logarithmic RSSI with a 70 dB dynamic range.
Low external component count; suitabl.
