SA58643

Single Pole Double Throw SPDT Switch

SA58643 Features

* I Wideband (DC to 1 GHz) I Low through loss (1 dB typical at 200 MHz) I Unused input is terminated internally in 50 Ω I Excellent overload capability (1 dB gain compression point +18 dBm at 300 MHz) I Low DC power (170 µA from 5 V supply) I Fast switching (20 ns typical) I Good isolation (off channe

SA58643 General Description

The SA58643 is a wideband RF switch fabricated in BiCMOS technology and incorporating on-chip CMOS/TTL compatible drivers. Its primary function is to switch signals in the frequency range DC to 1 GHz from one 50 Ω channel to another. The switch is activated by a CMOS/TTL compatible signal applied to.

SA58643 Datasheet (125.56 KB)

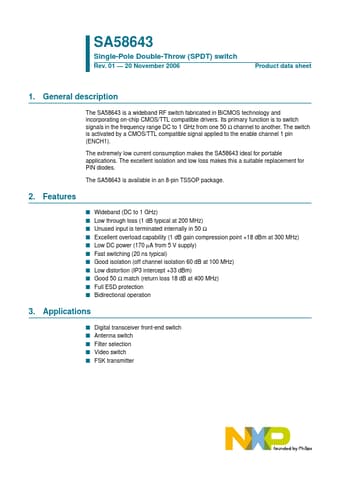

Preview of SA58643 PDF

Datasheet Details

Part number:

SA58643

Manufacturer:

NXP ↗

File Size:

125.56 KB

Description:

Single pole double throw spdt switch.
