SA58640DK Low-voltage mixer FM-IF

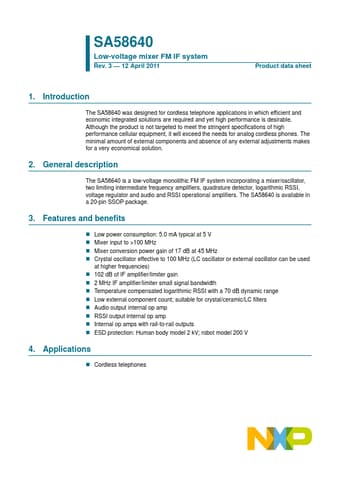

SA58640 Low-voltage mixer FM IF system Rev. 3 12 April 2011 Product data sheet 1. Introduction The SA58640 was designed for cordless telephone applications in which efficient and economic integrated solutions are required and yet high performance is desirable. Although the product is not targeted to meet the stringent specifications of high performance cellular equipment, it will exceed the needs for analog cordless phones. The minimal amount of external components and absence of any.

SA58640DK Features

* Low power consumption: 5.0 mA typical at 5 V

* Mixer input to >100 MHz

* Mixer conversion power gain of 17 dB at 45 MHz

* Crystal oscillator effective to 100 MHz (LC oscillator or external oscillator can be used at higher frequencies)

* 102 dB of IF amplifie
