SA58646 - UHF 900MHz transceiver

Product Overview

NXP

SA58646 UHF 900MHz transceiver by NXP - Datasheet Preview — Datasheet preview – SA58646

Datasheet Details

Part number	SA58646
Manufacturer	NXP
File Size	187.60 KB
Description	UHF 900MHz transceiver
Datasheet	SA58646 Datasheet

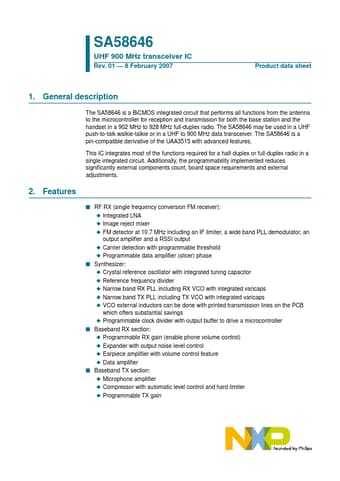

Additional preview pages of the SA58646 datasheet.

Product details

Description

The SA58646 is a BiCMOS integrated circuit that performs all functions from the antenna to the microcontroller for reception and transmission for both the base station and the handset in a 902 MHz to 928 MHz full-duplex radio.

Features

This IC integrates most of the functions required for a half-duplex or full-duplex radio in a single integrated circuit. Additionally, the programmability implemented reduces signiﬁcantly external components count, board space requirements and external adjustments. 2. Features I RF RX (single frequency conversion FM receiver): N Integrated LNA N Image reject mixer N FM detector at 10.7 MHz including an IF limiter, a wide band PLL demodulator, an output ampliﬁer and a RSSI output N Carrier dete.
