SA58646BD

UHF 900MHz transceiver IC

SA58646BD Features

* This IC integrates most of the functions required for a half-duplex or full-duplex radio in a single integrated circuit. Additionally, the programmability implemented reduces significantly external components count, board space requirements and external adjustments. 2. Features I RF RX (single freq

SA58646BD General Description

The SA58646 is a BiCMOS integrated circuit that performs all functions from the antenna to the microcontroller for reception and transmission for both the base station and the handset in a 902 MHz to 928 MHz full-duplex radio. The SA58646 may be used in a UHF push-to-talk walkie-talkie or in a UHF t.

SA58646BD Datasheet (187.60 KB)

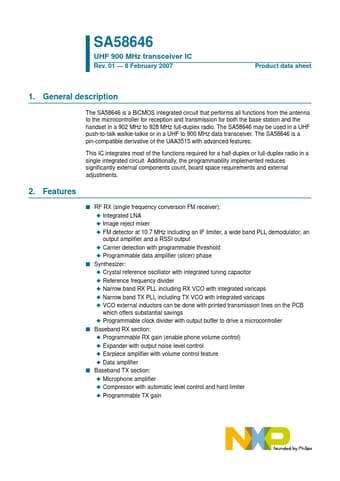

Preview of SA58646BD PDF

Datasheet Details

Part number:

SA58646BD

Manufacturer:

NXP ↗

File Size:

187.60 KB

Description:

Uhf 900mhz transceiver ic.
