SA58643DP, SA58643 Datasheet - NXP

SA58643DP Single Pole Double Throw SPDT Switch

The SA58643 is a wideband RF switch fabricated in BiCMOS technology and incorporating on-chip CMOS/TTL compatible drivers. Its primary function is to switch signals in the frequency range DC to 1 GHz from one 50 Ω channel to another. The switch is activated by a CMOS/TTL compatible signal applied to.

SA58643DP Features

* I Wideband (DC to 1 GHz) I Low through loss (1 dB typical at 200 MHz) I Unused input is terminated internally in 50 Ω I Excellent overload capability (1 dB gain compression point +18 dBm at 300 MHz) I Low DC power (170 µA from 5 V supply) I Fast switching (20 ns typical) I Good isolation (off channe

SA58643_PhilipsSemiconductors.pdf

This datasheet PDF includes multiple part numbers: SA58643DP, SA58643. Please refer to the document for exact specifications by model.

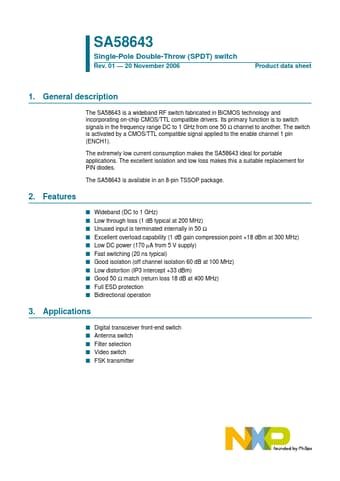

SA58643DP Datasheet Preview Page 2 SA58643DP Datasheet Preview Page 3

Datasheet Details

Part number:

SA58643DP, SA58643

Manufacturer:

NXP ↗

File Size:

125.56 KB

Description:

Single pole double throw spdt switch.

Note:

This datasheet PDF includes multiple part numbers: SA58643DP, SA58643.
Please refer to the document for exact specifications by model.
