SA9103C

SINGLE PHASE BIDIRECTIONAL POWER/ENERGY METERING IC WITH SERIAL INTERFACE

SA9103C Features

* n SA9103C SINGLE PHASE BIDIRECTIONAL POWER/ENERGY METERING IC WITH SERIAL INTERFACE n Performs bidirectional active and reactive power/energy, frequency and voltage measurement Meets the IEC 521/1036 Specification requirements for Class 1 AC Watt hour meters Protected against ESD Total power consu

SA9103C General Description

The SAMES SA9103C bidirectional Single Phase Power/Energy metering integrated circuit has a serial interface with a RS232 protocol, ideal for use with a ยต-Controller. The SA9103C performs the calculation for active and reactive power. The integrated values for active and reactive energy as well as t.

SA9103C Datasheet (251.33 KB)

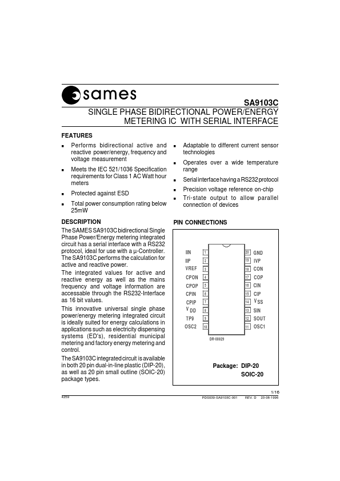

Preview of SA9103C PDF

Datasheet Details

Part number:

SA9103C

Manufacturer:

Sames

File Size:

251.33 KB

Description:

Single phase bidirectional power/energy metering ic with serial interface.
