K9XXG08UXA - 1G x 8 Bit / 2G x 8 Bit / 4G x 8 Bit NAND Flash Memory

Samsung semiconductor

The K9XXG08UXA by Samsung semiconductor is a 1G x 8 Bit / 2G x 8 Bit / 4G x 8 Bit NAND Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

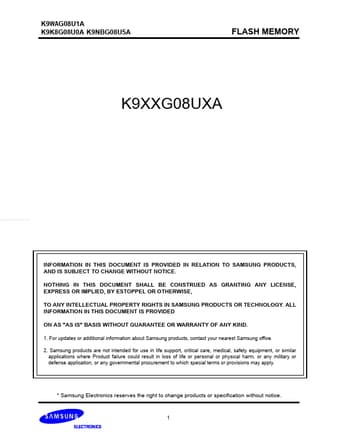

K9XXG08UXA 1G x 8 Bit / 2G x 8 Bit / 4G x 8 Bit NAND Flash Memory by Samsung semiconductor - Datasheet Preview — Official preview page of the **K9XXG08UXA** 1G x 8 Bit / 2G x 8 Bit / 4G x 8 Bit NAND Flash Memory datasheet (Samsung semiconductor).

Datasheet Details

Part number	K9XXG08UXA
Manufacturer	Samsung semiconductor
File Size	1.23 MB
Description	1G x 8 Bit / 2G x 8 Bit / 4G x 8 Bit NAND Flash Memory
Datasheet	K9XXG08UXA_Samsungsemiconductor.pdf
Additional preview pages of the K9XXG08UXA datasheet.

K9XXG08UXA Product details

Description

Offered in 1G x 8bit, the K9K8G08U0A is a 8G-bit NAND Flash Memory with spare 256M-bit.

Features

Voltage Supply - 2.70V ~ 3.60V.
Organization - Memory Cell Array : (1G + 32M) x 8bit - Data Register : (2K + 64) x 8bit.
Automatic Program and Erase - Page Program : (2K + 64)Byte - Block Erase : (128K + 4K)Byte.
Page Read Operation - Page Size : (2K + 64)Byte - Random Read : 25µs(Max. ) - Serial Access : 25ns(Min. ).
K9NBG08U5A : 50ns(Min. ).
Fast Write Cycle Time - Page Program time : 200µs(Typ. ) - Block Erase Time : 1.5ms(Typ. ).
Command.
