KS88C0116 Datasheet - Samsung semiconductor

KS88C0116 8-Bit CMOS Microcontroller

Pin Name P0.0 *P0.7 Pin Type I/O Pin Description I/O port with nibble-programmable pins; Schmitt trigger input or push-pull, opendrain output and software assignable pullups; also configurable as external interface address lines A8 *A15. Same general characteristics as port 0; also co.

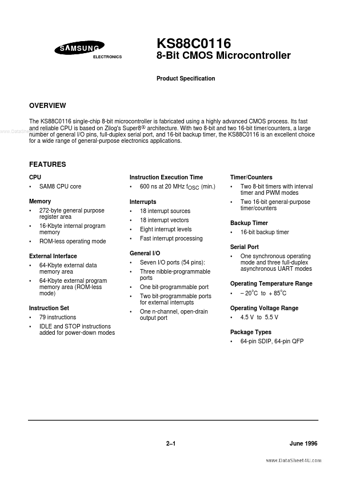

S MSUN G ELECTRONICS KS88C0116 8-Bit CMOS Microcontroller Product Specification OVERVIEW The KS88C0116 single-chip 8-bit microcontroller is fabricated using a highly advanced CMOS process. Its fast and reliable CPU is based on Zilog's Super8® architecture. With two 8-bit and two 16-bit timer/counters, a large www.DataSheet4U.com number of general I/O pins, full-duplex serial port, and 16-bit backup timer, the KS88C0116 is an excellent choice for a wide range of general-purpose electronics appl.

KS88C0116 Features

* CPU

* SAM8 CPU core Instruction Execution Time

* 600 ns at 20 MHz fOSC (min.) Timer/Counters

* Two 8-bit timers with interval timer and PWM modes Two 16-bit general-purpose timer/counters Memory

* 272-byte general purpose register area 1

KS88C0116 Datasheet (72.10 KB)

KS88C0116 Datasheet Preview — Preview of KS88C0116 PDF

Datasheet Details

Part number:

KS88C0116

Manufacturer:

Samsung semiconductor

File Size:

72.10 KB

Description:

8-bit cmos microcontroller.
