S1D2141X01-D0 R/G/B VIDEO AMPLIFIER FOR MONITORS

Pin No Pin Name Schematic VCC Description 4 6 8 Red Video Input (RIN) Green Video input (GIN) Blue Video Input (BIN) Max input video signal is 0.7Vpp 2.4V Bias 9 1 2 3 Video Contrast (CONST) Blue Drive (BDRIVE) Green Drive (GDRIVE) Red Drive (RDRIVE) Video maximum contrast control range (0V ~.

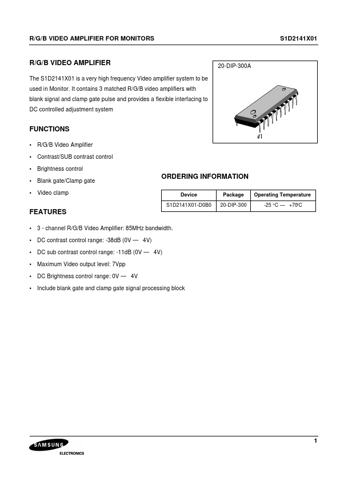

R/G/B VIDEO AMPLIFIER FOR MONITORS S1D2141X01 R/G/B VIDEO AMPLIFIER The S1D2141X01 is a very high frequency Video amplifier system to be used in Monitor. It contains 3 matched R/G/B video amplifiers with blank signal and clamp gate pulse and provides a flexible interfacing to DC controlled adjustment system 20-DIP-300A FUNCTIONS R/G/B Video Amplifier Contrast/SUB contrast control Brightness control Blank gate/Clamp gate Video clamp ORDERING .

S1D2141X01-D0 Features

* 3 - channel R/G/B Video Amplifier: 85MHz bandwidth. DC contrast control range: -38dB (0V

* 4V) DC sub contrast control range: -11dB (0V

* 4V) Maximum Video output level: 7Vpp DC Brightness control range: 0V

* 4V Incl
