S1D2514X01 Video AMP Merged OSD Processor

Table 2. Pin Description Pin No Pin Name Schematic Description 1 VFLB VFLB HFLB FLB signal is in TTL level 32 www.DataSheet4U.com HFLB Multi polarity input 3 VCO_IN_P PLL loop filter output 4 VPEF1 BandGap ref. output 5 VREF 7 Contrast cap (CONT_CAP) 4.0K I2C Data 100µ A Vref Contra.

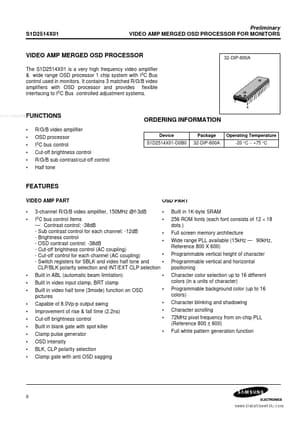

S1D2514X01 Preliminary VIDEO AMP MERGED OSD PROCESSOR FOR MONITORS VIDEO AMP MERGED OSD PROCESSOR The S1D2514X01 is a very high frequency video amplifier & wide range OSD processor 1 chip system with I2C Bus control used in monitors. It contains 3 matched R/G/B video amplifiers with OSD processor and provides flexible interfacing to I2C Bus controlled adjustment systems. 32-DIP-600A www.DataSheet4U.com FUNCTIONS ORDERING INFORMATION Device S1D2514X01-D0B0 Package 32-DIP-600A Operating Tempe.

S1D2514X01 Features

* VIDEO AMP PART

* 3-channel R/G/B video amplifier, 150MHz @f-3dB I2C bus control items

* Contrast control: -38dB - Sub contrast control for each channel: -12dB - Brightness control - OSD contrast control: -38dB - Cut-off brightness control (AC coupling) - Cut-off control for
