S1T2410B02, bipolar integrated circuit designed as telephone bell replacement

TONE RINGER S1T2410B01/B02 INTRODUCTION The S1T2410B01/B02 is a bipolar integrated circuit designed as a telephone bell replacement.8 *DIP<.

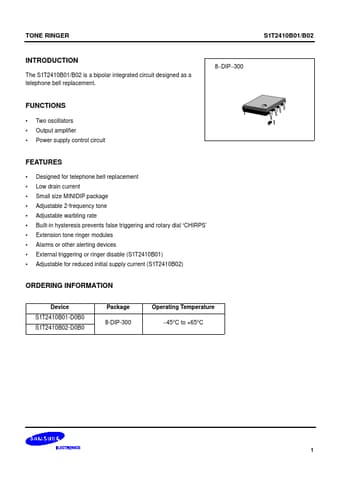

datasheet Preview Page 1 from Datasheet4u.com

S1T2410B02_Samsungsemiconductor.pdf

S1T2410B02 Datasheet Preview — Preview of S1T2410B02 PDF

Datasheet Details

Part number:

S1T2410B02

Manufacturer:

Samsung semiconductor

File Size:

197.55 KB

Description:

bipolar integrated circuit designed as telephone bell replacement

Features

* Designed for telephone bell replacement Low drain current Small size MINIDIP package Adjustable 2-frequency tone Adjustable warbling rate Built-in hysteresis prevents false triggering and rotary dial

Applications

* The AC ringer signal voltage appears across the TIP and RING inputs of the circuit, and is attenuated by capacitor C1 and resistor R1. (C1 also provides isolation from DC voltages (48V) on the exchange line). After full wave rectification by the bridge diode, the wave form is filtered by capacitor
