S3C7559 Datasheet - Samsung semiconductor

S3C7559 single-chip CMOS microcontroller

Table 1-1. S3C7559/P7559 Pin Descriptions Pin Name P0.0 P0.1 P0.2 P0.3 Pin Type I/O Description 4-bit I/O port. 1-bit or 4-bit read/write and test is possible. Individual pins are software configurable as input or output. 4-bit pull-up resistors are software assignable; pull-up resistors are automa.

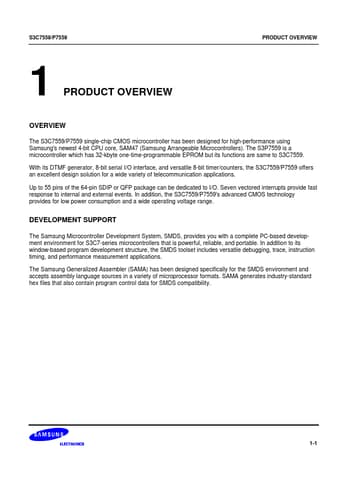

S3C7559/P7559 PRODUCT OVERVIEW 1 PRODUCT OVERVIEW OVERVIEW The S3C7559/P7559 single-chip CMOS microcontroller has been designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers). The S3P7559 is a microcontroller which has 32-kbyte one-time-programmable EPROM but its functions are same to S3C7559. With its DTMF generator, 8-bit serial I/O interface, and versatile 8-bit timer/counters, the S3C7559/P7559 offers an excellent design solution .

S3C7559 Features

* SUMMARY Memory

* Bit Sequential Carrier

* 1 K × 4-bit RAM 32 K × 8-bit ROM Supports 8-bit serial data transfer in arbitrary format 55 I/O Pins

* Interrupts

* Input only: 4 pins I/O: 43 pins N-channel open-drain I

S3C7559_Samsungsemiconductor.pdf

S3C7559 Datasheet Preview — Preview of S3C7559 PDF

Datasheet Details

Part number:

S3C7559

Manufacturer:

Samsung semiconductor

File Size:

266.16 KB

Description:

Single-chip cmos microcontroller.
