S3C7515 The S3C7515/P7515 single-chip CMOS microcontroller has been designed for high-performance using Samsungs newest 4-bit CPU core/ SAM47

PRODUCT OVERVIEW S3C7515/P7515 1 OVERVIEW PRODUCT OVERVIEW The S3C7515/P7515 single-chip CMOS microcontroller has been designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers). The S3P7515 is a microcontroller which has 16-kbyte one-time-programmable EPROM but its functions are same to S3C7515. With its DTMF generator, 8-bit serial I/O interface, and versatile 8-bit timer/counters, the S3C7515/P7515 offers an excellent design solution .

S3C7515 Features

* SUMMARY Memory

* 512 × 4-bit RAM

* 16,384 × 8-bit ROM 55 I/O Pins

* Input only: 4 pins

* I/O: 43 pins

* N-channel open-drain I/O: 8 pins Memory-Mapped I/O Structure

* Data memory bank 15 DTMF Generator

* 16 dual-tone frequencies for tone dialin

S3C7515_Samsungsemiconductor.pdf

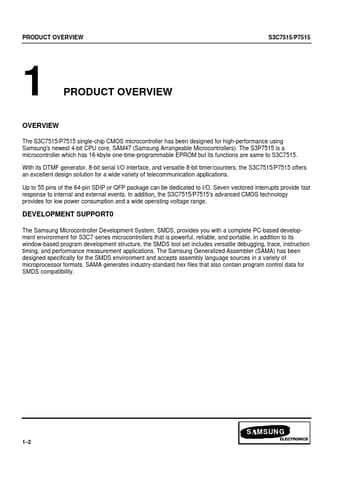

S3C7515 Datasheet Preview — Preview of S3C7515 PDF

Datasheet Details

Part number:

S3C7515

Manufacturer:

Samsung semiconductor

File Size:

287.59 KB

Description:

The s3c7515/p7515 single-chip cmos microcontroller has been designed for high-performance using samsungs newest 4-bit cpu core/ sam47.
