S3C9014

SAM87RI family of 8-bit single-chip CMOS microcontrollers

Samsung semiconductor

S3C9014 Features

* CPU

* SAM87RI CPU core General I/O

* Memory

* 4-Kbyte internal program memory (ROM) 208-byte internal register file 8-Kbyte external program memory 8-Kbyte external data memory

* Five ports (32 pins total) Three bit-pr

S3C9014 General Description

Table 1-1. S3C9004/P9004/C9014/P9014 Pin Descriptions Pin Names P0.0-P0.7 Pin Type I/O Pin Description Bit-programmable I/O port for Schmitt trigger input or open-drain output. Port0 can also be configured as external interface address lines A8A12. Bit-programmable I/O port for Schmitt trigger inpu.

S3C9014 Datasheet (162.12 KB)

S3C9014 Datasheet Preview — Preview of S3C9014 PDF

Datasheet Details

Part number:

S3C9014

Manufacturer:

Samsung semiconductor

File Size:

162.12 KB

Description:

Sam87ri family of 8-bit single-chip cmos microcontrollers.

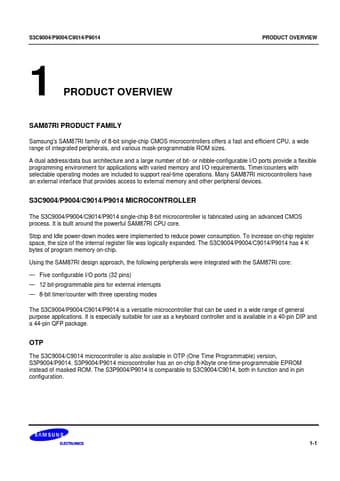

S3C9004/P9004/C9014/P9014 PRODUCT OVERVIEW 1 PRODUCT OVERVIEW SAM87RI PRODUCT FAMILY Samsung's SAM87RI family of 8-bit single-chip CMOS microcontr.
