S3C9414 SAM87Ri family of 8-bit single-chip CMOS microcontrollers

Table 1-1. S3C9404/C9414 Pin Descriptions Pin Names P0.0-P0.7 Pin Type I/O Pin Description Bit-programmable I/O port for normal input or push-pull, open-drain output. Pull-up resistors are assignable by software. Bit-programmable I/O port for Schmitt trigger input or push-pull output. Pull-up resis.

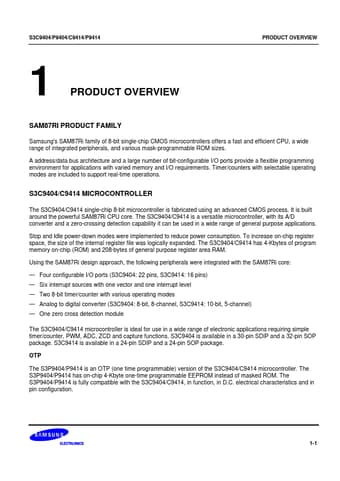

S3C9404/P9404/C9414/P9414 PRODUCT OVERVIEW 1 PRODUCT OVERVIEW SAM87RI PRODUCT FAMILY Samsung's SAM87Ri family of 8-bit single-chip CMOS microcontrollers offers a fast and efficient CPU, a wide range of integrated peripherals, and various mask-programmable ROM sizes. A address/data bus architecture and a large number of bit-configurable I/O ports provide a flexible programming environment for applications with varied memory and I/O requirements. Timer/counters with selectable operating modes .

S3C9414 Features

* CPU

* Timer/Counter

* SAM87Ri CPU core One 8-bit basic timer for watchdog function One 8-bit timer/counter with three operating modes (10-bit PWM 1ch) One 8-bit timer/counter for the zero-crossing detection circuit Memory

* 4-Kbyte internal program me

S3C9414 Datasheet (245.03 KB)

S3C9414 Datasheet Preview — Preview of S3C9414 PDF

Datasheet Details

Part number:

S3C9414

Manufacturer:

Samsung semiconductor

File Size:

245.03 KB

Description:

Sam87ri family of 8-bit single-chip cmos microcontrollers.
