S3C9432 Datasheet - Samsung semiconductor

S3C9432 SAM87Ri family of 8-bit single-chip CMOS microcontrollers

Table 1-1. S3C9432/C9434 Pin Descriptions Pin Names P0.0-P0.3 Pin Type I/O Pin Description Bit-programmable I/O port for Schmitt trigger input or push-pull, open-drain output. Pull-up resistors are assignable by software. Port 0 pins can also be used as alternative function. Bit-programmable I/O po.

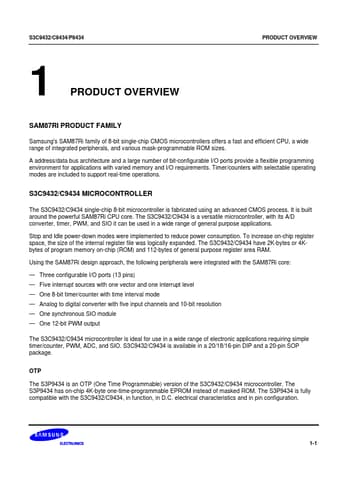

S3C9432/C9434/P9434 PRODUCT OVERVIEW 1 PRODUCT OVERVIEW SAM87RI PRODUCT FAMILY Samsung's SAM87Ri family of 8-bit single-chip CMOS microcontrollers offers a fast and efficient CPU, a wide range of integrated peripherals, and various mask-programmable ROM sizes. A address/data bus architecture and a large number of bit-configurable I/O ports provide a flexible programming environment for applications with varied memory and I/O requirements. Timer/counters with selectable operating modes are in.

S3C9432 Features

* CPU

* SAM87RI CPU core Timer/Counters

* Memory

* 2/4K-byte internal program memory (ROM) 112-byte general purpose register area (RAM) PWM Module

* Instruction Set

* 41 instructions The SAM87RI core provides all the SAM87 core inst

S3C9432_Samsungsemiconductor.pdf

S3C9432 Datasheet Preview — Preview of S3C9432 PDF

Datasheet Details

Part number:

S3C9432

Manufacturer:

Samsung semiconductor

File Size:

190.44 KB

Description:

Sam87ri family of 8-bit single-chip cmos microcontrollers.
