S5L9284D - DIGITAL SIGNAL PROCESSOR

Samsung semiconductor

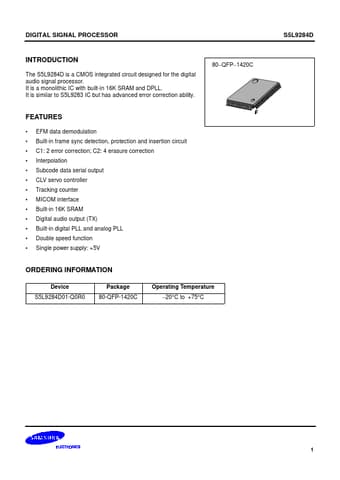

The S5L9284D by Samsung semiconductor is a DIGITAL SIGNAL PROCESSOR. Below is the official datasheet preview.

📥 Download Datasheet

S5L9284D DIGITAL SIGNAL PROCESSOR by Samsung semiconductor - Datasheet Preview — Official preview page of the **S5L9284D** DIGITAL SIGNAL PROCESSOR datasheet (Samsung semiconductor).

Datasheet Details

Part number	S5L9284D
Manufacturer	Samsung semiconductor
File Size	350.16 KB
Description	DIGITAL SIGNAL PROCESSOR
Datasheet	S5L9284D_Samsungsemiconductor.pdf
Additional preview pages of the S5L9284D datasheet.

S5L9284D Product details

Description

Pin No. O I O I O I O O O O O O O O O O O O I O O O O I I I/O O O Analog supply voltage 1 Charge pump output for master PLL Filter input for master PLL Filter output for master PLL VCO control voltage fo

Features

EFM data demodulation Built-in frame sync detection, protection and insertion circuit C1: 2 error correction; C2: 4 erasure correction Interpolation Subcode data serial output CLV servo controller Tracking counter MICOM interface Built-in 16K SRAM Digital audio output (TX) Built-in digital PLL and analog PLL Double speed function Single power supply: +5V.
