S6A0070 - 40 CH SEGMENT/COMMON DRIVER FOR DOT MATRIX LCD

Name: S6A0070
SKU: S6A0070-260466

Samsung semiconductor

The S6A0070 by Samsung semiconductor is a 40 CH SEGMENT/COMMON DRIVER FOR DOT MATRIX LCD. Below is the official datasheet preview.

Datasheet Details

Part number	S6A0070
Manufacturer	Samsung semiconductor
File Size	399.59 KB
Description	40 CH SEGMENT/COMMON DRIVER FOR DOT MATRIX LCD
Datasheet	S6A0070_Samsungsemiconductor.pdf

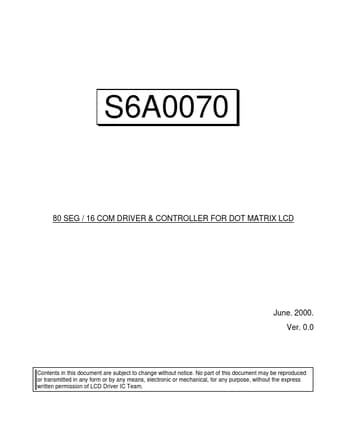

Additional preview pages of the S6A0070 datasheet.

Internal Memory - Character Generator ROM: 8320bits (192 cha. X 5 x 7 dots) & (32 cha. X 5 x 10 dots) - Character Generator RAM: 64 x 8 bits (8 cha. X 5 x 7 dots) - Display Data RAM: 80 × 8 bits for 80 digits (80 characters max. ) Power Supply Voltage: 2.7 to 5.5 V (VDD) LCD Driving Voltage: 3.0 to 10.0 V (VDD - V5) Supply Voltage for display: 0 to -5V (V5) Programmable duty cycle: 1/8 duty, 1/11 duty or 1/16 Internal oscillator with an external resistor Bare die or bumped chip availab.
