S6A0073 Datasheet - Samsung semiconductor

S6A0073 40 CH SEGMENT/COMMON DRIVER FOR DOT MATRIX LCD

Pin (No) VDD(35) VSS1, VSS2 (46, 61) V1-V5 (68 - 64) Vci (58) I Power supply I/O Name 0V (GND) Bias voltage level for LCD driving Input voltage to the voltage converter to generate LCD drive voltage (Vci = 1.0 to 4.5V). Segment output Common output Oscillator Segment signal output for LCD drive. Com.

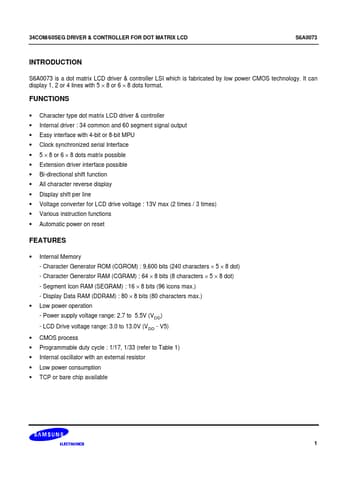

34COM/60SEG DRIVER & CONTROLLER FOR DOT MATRIX LCD S6A0073 INTRODUCTION S6A0073 is a dot matrix LCD driver & controller LSI which is fabricated by low power CMOS technology. It can display 1, 2 or 4 lines with 5 × 8 or 6 × 8 dots format. FUNCTIONS Character type dot matrix LCD driver & controller Internal driver : 34 common and 60 segment signal output Easy interface with 4-.

S6A0073 Features

* Internal Memory - Character Generator ROM (CGROM) : 9,600 bits (240 characters × 5 × 8 dot) - Character Generator RAM (CGRAM) : 64 × 8 bits (8 characters × 5 × 8 dot) - Segment Icon RAM (SEGRAM) : 16 × 8 bits (96 icons max.) - Display Data RAM (DDRAM) : 80 × 8 bits (80 characters max.)

S6A0073 Datasheet (923.89 KB)

S6A0073 Datasheet Preview — Preview of S6A0073 PDF

Datasheet Details

Part number:

S6A0073

Manufacturer:

Samsung semiconductor

File Size:

923.89 KB

Description:

40 ch segment/common driver for dot matrix lcd.
