K9K4G08U0M 512M x 8 Bit / 256M x 16 Bit NAND Flash Memory

Offered in 512Mx8bit or 256Mx16bit, the K9XXGXXXXM is 4G bit with spare 128M bit capacity. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. A program operation can be performed in typical 300µs on the 2112byte(X8 device) or 1056-word(X16 device) page a.

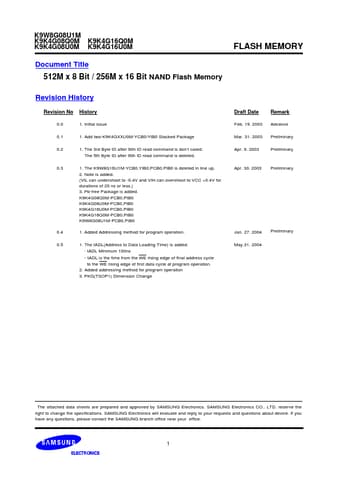

K9W8G08U1M K9K4G08Q0M K9K4G08U0M K9K4G16Q0M K9K4G16U0M FLASH MEMORY Document Title 512M x 8 Bit / 256M x 16 Bit NAND Flash Memory Revision History Revision No 0.0 0.1 0.2 History 1. Initial issue 1. Add two-K9K4GXXU0M-YCB0/YIB0 Stacked Package 1. The 3rd Byte ID after 90h ID read command is don’ t cared. The 5th Byte ID after 90h ID read command is deleted. 1. The K9W8G16U1M-YCB0,YIB0,PCB0,PIB0 is deleted in line up. 2. Note is added. (VIL can undershoot to -0.4V and VIH can overshoot to VC.

K9K4G08U0M Features

* Voltage Supply -1.8V device(K9K4GXXQ0M): 1.70V~1.95V -3.3V device(K9XXGXXUXM): 2.7 V ~3.6 V

* Organization - Memory Cell Array -X8 device(K9XXG08XXM) : (512M + 16,384K)bit x 8bit -X16 device(K9XXG16XXM) : (256M + 8,192K)bit x 16bit - Data Register -X8 device(K9XXG08XXM): (2K + 64)b
