KA2181 Datasheet - Samsung

KA2181 REMOTE CONTROL PREAMPLIFIER

KA2181 Features

* of low power, high sensitivity and wide supply voltage. 8-SIP FUNCTIONS

* AMP

* ABLC

* LIMITER & LEVEL SHIFT

* PEAK DET

* SHAPING FEATURES

* Wide operation voltage VCC=6 to 14.4V

* Low power consumption ICC=2.5mA Typ. ORDERING INFORMATION

KA2181_Samsungsemiconductor.pdf

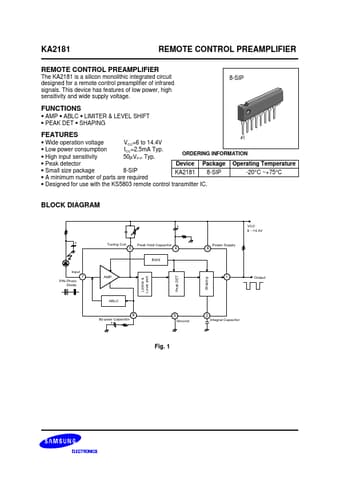

Preview of KA2181 PDF
KA2181 Datasheet Preview Page 2 KA2181 Datasheet Preview Page 3

Datasheet Details

Part number:

KA2181

Manufacturer:

Samsung

File Size:

49.43 KB

Description:

Remote control preamplifier.
