LSC320AN02-T Datasheet - Samsung

LSC320AN02-T TFT LCD

2. ABSOLUTE MAXIMUM RATINGS 3. OPTICAL CHARACTERISTICS 4. ELECTRICAL CHARACTERISTICS 4.1 TFT LCD MODULE 5. INPUT TERMINAL PIN ASSIGNMENT 5.1 INPUT SIGNAL & POWER 5.2 LVDS INTERFACE 5.3 INPUT COLOR DATA MAPPING 6. INTERFACE TIMING 6.1 TIMING PARAMETERS OF TIMING (ONLY DE MODE) 6.2 TIMING DIAGRAMS.

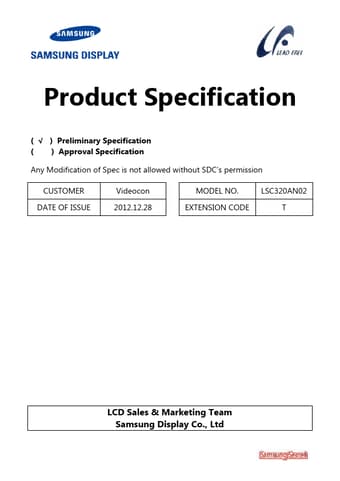

Product Specification ( √ ) Preliminary Specification ( ) Approval Specification Any Modification of Spec is not allowed without SDC’s permission CUSTOMER DATE OF ISSUE Videocon 2012.12.28 MODEL NO. LSC320AN02 EXTENSION CODE T LCD Sales & Marketing Team Samsung Display Co., Ltd <.

LSC320AN02-T Features

* RoHS compliance (Pb-free) High contrast ratio & aperture ratio with the wide color gamut PVA(Patterned vertical align) mode Wide viewing angle (± 178°) High speed response HD resolution (16:9) DE (Data enable) mode The interface (1Pixel/clock) of LVDS (Low voltage differential signaling) GENERAL IN
