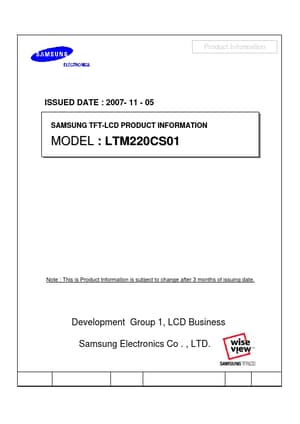

LTM220CS01 Datasheet Preview — Preview of LTM220CS01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LTM220CS01
Manufacturer: Samsung
File Size: 565.08 KB
Datasheet: LTM220CS01_Samsung.pdf
Description: LCD

LTM220CS01 Product details

Description

--------------------------------------------------------------------------------- (3) 1.

Features

High contrast ratio, high aperture structure.
S-PVA (Super Patterned Vertical Alignment) mode.
Wide viewing angle.
High speed response.
WUXGA (1920 x 1200 pixels) resolution.
U-type 6 CCFTs (Cold Cathod Fluorescent Tube).
DE (Data Enable) mode.
LVDS (Low Voltage differential Signaling) interface (2pixel/clock).
RoHS compliance.
Pb-free compliance.
High Color Gamut.
