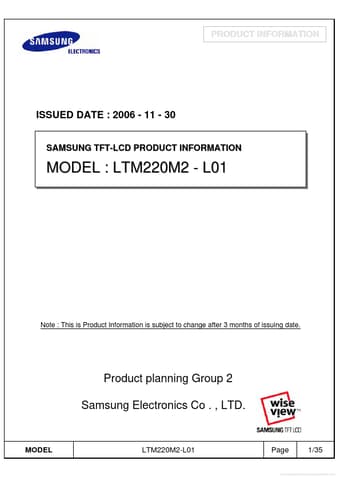

LTM220M2-L01 Datasheet Preview — Preview of LTM220M2-L01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LTM220M2-L01
Manufacturer: Samsung
File Size: 548.82 KB
Datasheet: LTM220M2-L01_Samsung.pdf
Description: TFT LCD

LTM220M2-L01 Product details

Description

--------------------------------------------------------------------------------- (3) 1.

Features

High contrast ratio, high aperture structure.
TN (Twisted Nematic) mode.
Wide Viewing Angle.
High speed response.
WSXGA+ (1680 x 1050 pixels) resolution.
Low power consumption.
DE (Data Enable) only mode.
LVDS (Low Voltage Differential Signaling) interface (2pixel/clock).
Compact Size Design.
RoHS, TCO 03’ compliance.
Wide Color Gamut (92%).
