LTN101NT06-2

LCD

Samsung

LTN101NT06-2 Features

* High contrast ratio

* WSVGA (1024 x 600 pixels ) resolution

* Fast Response

* LED Back Light with embedded LED Driver

* DE (Data enable) only mode

* 3.3V LVDS Interface

* Onboard EEDID chip

* Green product (RoHS compliant) APPLICATIO

LTN101NT06-2 General Description

1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 LED Driver 4. Block Diagram 4.1 TFT LCD Module 4.2 LED Placement Structure

*

*

*

LTN101NT06-2 Datasheet (0.95 MB)

LTN101NT06-2 Datasheet Preview — Preview of LTN101NT06-2 PDF

Datasheet Details

Part number:

LTN101NT06-2

Manufacturer:

Samsung

File Size:

0.95 MB

Description:

Lcd.

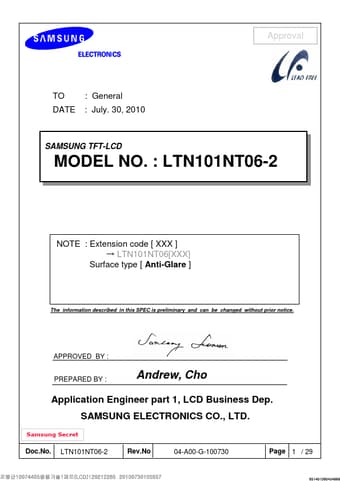

Approval TO DATE : General : July. 30, 2010 SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN101NT06-2 LTN101NT06-2 NOTE : Extension code.
