LTN101NT06-001 - Display Module

Samsung

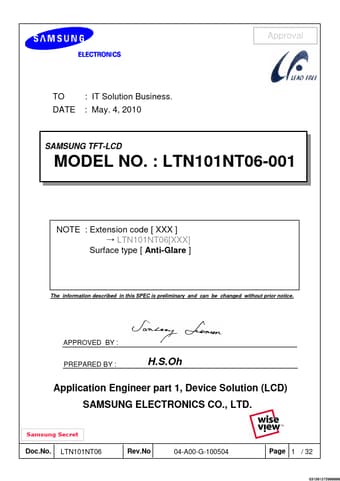

LTN101NT06-001 Datasheet Preview — Preview of LTN101NT06-001 PDF

Datasheet Details

Part number	LTN101NT06-001
Manufacturer	Samsung
File Size	588.00 KB
Description	Display Module
Datasheet	LTN101NT06-001-Samsung.pdf

LTN101NT06-001 Product details

Description

-------------------( 4 ) 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings -------------------( 5 ) 2. Optical Characteristics -------------------( 7 ) 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 LED Driver - - - - - - - - - - - - - - - - - - - ( 10 ) 4. Block Diagram 4.1 TFT LCD Module 4.2 LED Placement Structure - - - - - - - - - - - - - - - - - - - ( 13 ) 5. Input Terminal Pin Assignment - - - - - - - - - - -

Features

High contrast ratio.
WSVGA (1024 x 600 pixels ) resolution.
Fast Response.
LED Back Light with embedded LED Driver.
DE (Data enable) only mode.
3.3V LVDS Interface.
Onboard EEDID chip.
Green product (RoHS compliant).
