LTN156AT01-H01

LCD

Samsung

LTN156AT01-H01 Features

* Thin and light weight

* High contrast ratio, high aperture structure

* 1366 x 768 pixels resolution (16:9)

* Fast Response Time

* Low power consumption

* DE (Data enable) only mode

* 3.3V LVDS Interface

* On board EDID chip

LTN156AT01-H01 General Description

1. Absolute Maximum Ratings 1.1 Environmental Absolute Ratings 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Back-light Unit 4. Block Diagram 4.1 TFT LCD Module 4.2 Backlight Unit

*

*

*

*

*

*.

LTN156AT01-H01 Datasheet (428.47 KB)

LTN156AT01-H01 Datasheet Preview — Preview of LTN156AT01-H01 PDF

Datasheet Details

Part number:

LTN156AT01-H01

Manufacturer:

Samsung

File Size:

428.47 KB

Description:

Lcd.

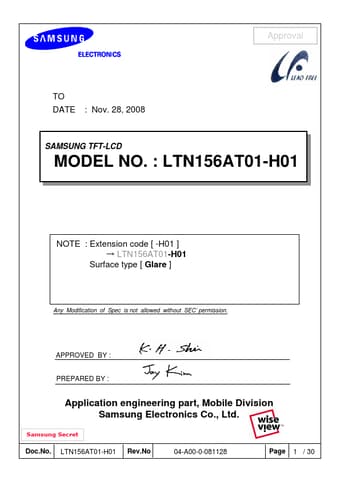

www.DataSheet.co.kr Approval TO DATE : Nov. 28, 2008 SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN156AT01-H01 LTN156AT01-H01 NOTE : E.
