LTN156AT02-A04 Datasheet - Samsung

LTN156AT02-A04 LCD

1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 LED Driver 4. Block Diagram 4.1 TFT LCD Module * * * * * * .

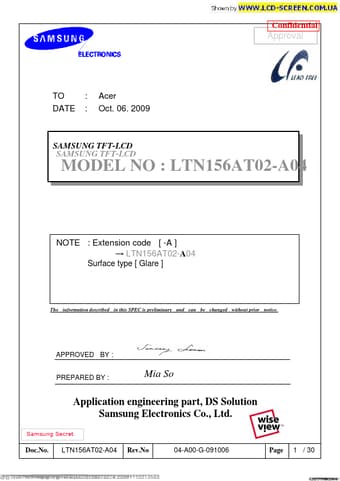

www.DataSheet.co.kr Confidential Approval TO DATE : : Acer Oct. 06. 2009 SAMSUNG TFT-LCD SAMSUNG TFT-LCD MODEL NO : LTN156AT02-A04 NOTE : Extension code [ -A ] → LTN156AT02-A04 Surface type [ Glare ] The information described in this SPEC is preliminary and can be changed without prior notice. APPROVED BY : PREPARED BY : Mia So Application engineering part, DS Solution Samsung Electronics Co., Ltd. Samsung Secret Doc.No. LTN156AT02-A04 Rev.No 04-A00-G-091006 Page 1 / 30 Datash.

LTN156AT02-A04 Features

* Thin and light weight

* High contrast ratio, high aperture structure

* 1366 x 768 pixels resolution (16:9)

* Fast Response Time

* Low power consumption

* LED BLU Structure

* DE (Data enable) only mode

* 3.3V LVDS Interface

* O

LTN156AT02-A04 Datasheet (1.02 MB)
