LTN156AT32-L01 - TFT LCD

Samsung

📥 Download Datasheet

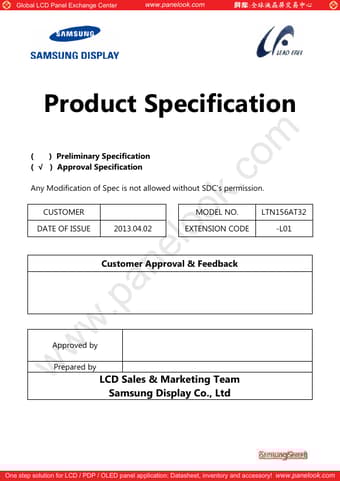

LTN156AT32-L01 Datasheet Preview — Preview of LTN156AT32-L01 PDF

Datasheet Details

Part number	LTN156AT32-L01
Manufacturer	Samsung
File Size	1.03 MB
Description	TFT LCD
Datasheet	LTN156AT32-L01-Samsung.pdf

LTN156AT32-L01 Product details

Description

3 2. ABSOLUTE MAXIMUM RATINGS 5 2.1 ENVIRONMENTAL ABSOLTE RATINGS 5 2.2 ELECTRICAL ABSOLUTE RATINGS 6 2.3 THE OTHERS 6 3. OPTICAL CHARACTERISTICS 7 4. BLOCK DIAGRAM 10 4.1 TFT LCD MODULE 10 4.2 THE STRUCTURE OF LED PLACEMENT 10 5. ELECTRICAL CHARACTERISTICS 11 5.1 TFT LCD MODULE 11 5.2 BACK LIGHT UNIT 13 5.3 LED DRIVER 13 5.4 LVDS INTERFACE 15 5.5 INTERFACE TIMING 17 5.6 INPUT COLOR DATA MAPPING 18 5.7 POWER ON/OFF SEQUENCE 19 5.8 INPUT TERMINAL PIN ASSIGNMENT 21 6.

Features

High contrast ratio HD (1366 x 768 pixels) resolution Low power consumption Fast Response LED back light with an embedded LED driver DE (Data enable) only mode 3.3V LVDS Interface Onboard EDID chip.
