LTN160HT01-A02 Datasheet - Samsung

LTN160HT01-A02 LCD Module

1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 Inverter 4. Block Diagram 4.1 TFT LCD Module 4.2 Backlight Unit 4.3 Inverter Unit * * <.

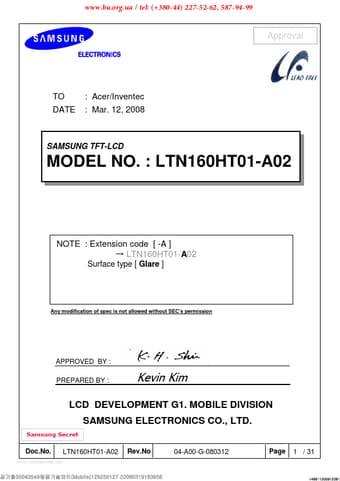

www.bu.org.ua / tel: (+380-44) 227-52-62, 587-94-99 Approval TO DATE : Acer/Inventec : Mar. 12, 2008 SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN160HT01-A02 LTN160HT01-A02 NOTE : Extension code [ -A ] → LTN160HT01-A02 Surface type [ Glare ] Any modification of spec is not allowed without SEC’s permission APPROVED BY : PREPARED BY : Kevin Kim LCD DEVELOPMENT G1. MOBILE DIVISION SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. www.DataSheet4U.net LTN160HT01-A02 Rev.No .

LTN160HT01-A02 Features

* High contrast ratio, high aperture structure

* 1920 x 1080 pixels resolution (16:9)

* High color Gamut (Typical 60%)

* Low power consumption

* Fast Response Time

* Single CCFL

* DE(Data enable) only mode

* 3.3V LVDS Interface
