SP0211N Datasheet - Samsung

SP0211N HARD DISK DRIVE service manual

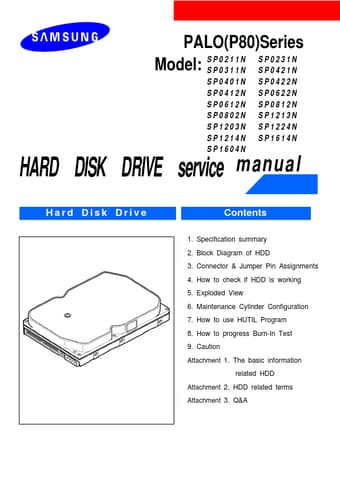

www.DataSheet.co.kr PALO(P80)Series P0211N SP0231N Model: S SP0311N SP0421N SP0401N SP0412N SP0612N SP0802N SP1203N SP1214N SP1604N SP0422N SP0622N SP0812N SP1213N SP1224N SP1614N HARD DISK DRIVE service Hard Disk Drive manual Contents 1. Specification summary 2. Block Diagram of HDD 3. Connector & Jumper Pin Assignments 4. How to check if HDD is working 5. Exploded View 6. Maintenance Cylinder Configuration 7. How to use HUTIL Program 8. How to progress Burn-In Test 9. Caution Attachment 1..

SP0211N Features

* Buffer size 2 Mbytes MTBF(POH) 500,000 hours Seek Time (RD/WT typical) RPM Temperature(Operating) Humidity(Operating) Temperature(Non-operating) Humidity(Non-operating) Linear Shock (Operating) Linear Shock (Non-operating) Track to Track : 0.8 / 1.0 ms Average Full Stroke : 8.9 / 10 ms : 18 / 19

SP0211N Datasheet (687.56 KB)

Preview of SP0211N PDF
SP0211N Datasheet Preview Page 2 SP0211N Datasheet Preview Page 3

Datasheet Details

Part number:

SP0211N

Manufacturer:

Samsung

File Size:

687.56 KB

Description:

Hard disk drive service manual.
