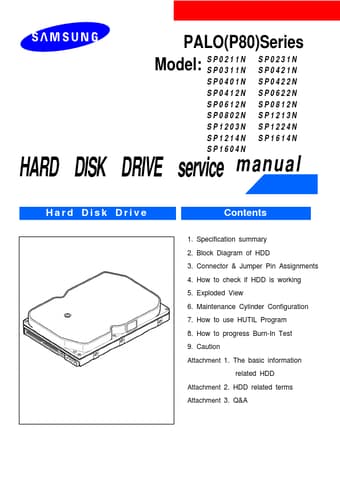

SP0231N - HARD DISK DRIVE service manual

Product Overview

Samsung

Part number	SP0231N
Manufacturer	Samsung
File Size	687.56 KB
Description	HARD DISK DRIVE service manual
Datasheet	SP0231N Datasheet
Note	This datasheet PDF includes multiple part numbers: SP0231N, SP0211N. Please refer to the document for exact specifications by model.
Additional preview pages of the SP0231N datasheet.

Buffer size 2 Mbytes MTBF(POH) 500,000 hours Seek Time (RD/WT typical) RPM Temperature(Operating) Humidity(Operating) Temperature(Non-operating) Humidity(Non-operating) Linear Shock (Operating) Linear Shock (Non-operating) Track to Track : 0.8 / 1.0 ms Average Full Stroke : 8.9 / 10 ms : 18 / 19 ms 7200 ± 0.35 % RPM 0 ~ 60°C 5 ~ 90 % 63 G @2.0ms - 40 ~ + 70°C 5 ~ 95 % 350 G (2ms linear shock) Linear Shock Non-condensing PALO 1 Datasheet pdf - http://www. DataSheet4U. net/ www. DataSheet. co. kr.
