HW-XX-XX-XX-X-XXXX-SM-X-XXX - HW BOARD-TO-BOARD ASSEMBLY

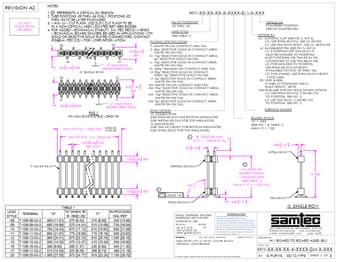

HW BOARD TO BOARD ASSEMBLY DWG.

NO.

HW-XX-XX-XX-X-XXXX-SM-X-XXX F:DWGMISCMKTGHW-XX-XX-XX-X-XXXX-SM-X-XXX-MKT.SLDDRW BY: G PURVIS 03/12/1993 SHEET 1 OF 3 REVISION AZ "C" +.000[0.00] -.005[0.13] IN-PROCESS OAL REF .045 1.14 REF .110 2.79 (NO OF POS -2) x.100[2.54] LC-05-TM -D: DOUBLE ROW

REVISION AZ DO NOT SCALE FROM THIS PRINT NOTES: 1.

C REPRESENTS A CRITICAL DIMENSION.

HW-XX-XX-XX-X-XXXX-SM-X-XXX 2.

TUBE POSITIONS -05 THRU -36 ONLY; POSITIONS -02 THRU -04 TO BE LAYER PACKAGED.

MAXIMUM CUT FLASH: .020 [0.51] CUT FLASH TO BE No OF POSITIONS IN A NON-CRITICAL AREA LOCATED BETWEEN BODIES.

-02 THRU -36 4.

FOR ADDED MECHANICAL STABILITY, SAMTEC RECOMMENDS MECHANICAL BOARD SPACERS BE USED IN APPLICATIONS WITH GOLD OR SELECTIVE GOLD PLATED CONNECTORS.

CONTACT LEAD STYLE
