QRF8-XXX-XX-X-RA-GP-XX Datasheet - Samtec

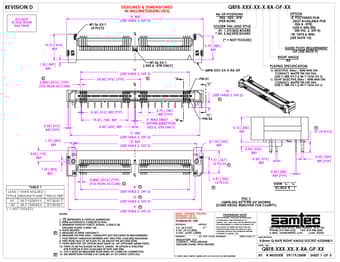

QRF8-XXX-XX-X-RA-GP-XX 0.8mm Q-RATE RIGHT ANGLE SOCKET ASSEMBLY

DWG. NO. MATERIAL: INSULATORS: LCP CONTACT : PHOS BRONZE GROUND PLANE: PHOS BRONZE DO NOT SCALE DRAWING SHEET SCALE: 2:1 0.8mm Q-RATE RIGHT ANGLE SOCKET ASSEMBLY F:DWGMISCMKTGQRF8-XXX-XX-X-RA-GP-XX-MKT.SLDDRW BY: R MUSSER QRF8-XXX-XX-X-RA-GP-XX 09/19/2008 SHEET 1 OF 5 Free Datasheet http:.
REVISION D DO NOT SCALE FROM THIS PRINT WT-36-XX-T (4 PLCS) DESIGNED & DIMENSIONED IN MILLIMETERS[INCHES] "A" REF (SEE TABLE 2, SHT 2) C L 10.51 .414 REF QRF8-XXX-XX-X-RA-GP-XX No OF POSITIONS -026, -052, -078 (PER ROW) SOLDER TAIL LEAD STYLE -01: 1.57[.062] BOARD -02: 2.36[.093] BOARD ( = NOT TOOLED) 9.79 .385 REF OPTION -K: POLYIMIDE FILM (NOT AVAILABLE FOR -026 & -078) (USE K-500-300, SEE FIG. 2, SHT 4) -TR: TAPE & REEL (SEE NOTE 10) GUIDE POSTS REQUIREMENT -GP (SEE NOTE 9) RIGHT .

QRF8-XXX-XX-X-RA-GP-XX-Samtec.pdf

Preview of QRF8-XXX-XX-X-RA-GP-XX PDF
QRF8-XXX-XX-X-RA-GP-XX Datasheet Preview Page 2 QRF8-XXX-XX-X-RA-GP-XX Datasheet Preview Page 3

Datasheet Details

Part number:

QRF8-XXX-XX-X-RA-GP-XX

Manufacturer:

Samtec

File Size:

540.02 KB

Description:

0.8mm q-rate right angle socket assembly.
