PD40FG120 - (PD40FGxxx) THYRISTOR MODULE

PD40FG120 Description

THYRISTOR MODULE PK(PD,PE)40FG UL;E76102 M Power Thyristor/Diode Module PK40FG series are designed for various rectifier circuits and power controls..

PD40FG120 Applications

* Various rectifiers AC/DC motor drives Heater controls Light dimmers Static switches Internal Configurations PK PE PD Unit A Maximum Ratings Ratings Symbol Item PK40FG40 PD40FG40 PE40FG40 400 480 400 PK40FG80 PD40FG80 PE40FG80 800 960 800 Conditions Tj 25 PK40FG120 PD40FG120 PE40FG120 1200 130

📥 Download Datasheet

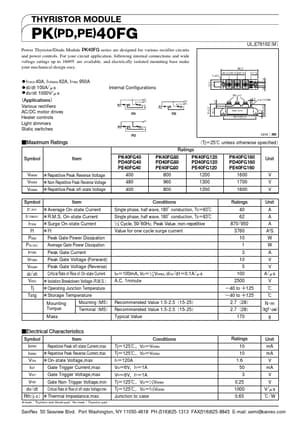

Preview of PD40FG120 PDF
datasheet Preview Page 2

Datasheet Details

Part number
PD40FG120
Manufacturer
SanRex Corporation
File Size
96.20 KB
Datasheet
PD40FG120_SanRexCorporation.pdf
Description
(PD40FGxxx) THYRISTOR MODULE
