PD40 - DC/DC Converters

📥 Download Datasheet

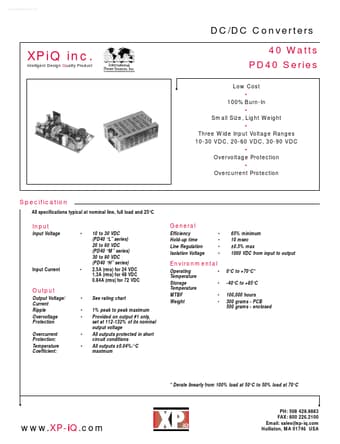

Datasheet preview – PD40

Datasheet Details

Part number PD40
Manufacturer XP
File Size 96.02 KB
Description DC/DC Converters
Datasheet download datasheet PD40 Datasheet
Additional preview pages of the PD40 datasheet.

📁 Similar Datasheet

  • PD400N16 - Diode (Nihon Inter Electronics)
  • PD400N8 - Diode (Nihon Inter Electronics)
  • PD40F120 - (PD40Fxxx) THYRISTOR MODULE (SanRex Corporation)
  • PD40F160 - (PD40Fxxx) THYRISTOR MODULE (SanRex Corporation)
  • PD40F40 - (PD40Fxxx) THYRISTOR MODULE (SanRex Corporation)
  • PD40F80 - (PD40Fxxx) THYRISTOR MODULE (SanRex Corporation)
  • PD40FG120 - (PD40FGxxx) THYRISTOR MODULE (SanRex Corporation)
  • PD40FG160 - (PD40FGxxx) THYRISTOR MODULE (SanRex Corporation)
  • PD40FG40 - (PD40FGxxx) THYRISTOR MODULE (SanRex Corporation)
  • PD40FG80 - (PD40FGxxx) THYRISTOR MODULE (SanRex Corporation)
Other Datasheets by XP

    Full PDF Text Transcription

    Click to expand full text
    www.DataSheet4U.com DC/DC Converters XPiQ inc. Intelligent Design Quality Product 40 Watts PD40 Series • Low Cost • 100% Burn-In • Small Size, Light Weight • Three Wide Input Voltage Ranges 10-30 VDC, 20-60 VDC, 30-90 VDC • Overvoltage Protection • Overcurrent Protection Specification All specifications typical at nominal line, full load and 25°C Input Input Voltage • 10 to 30 VDC (PD40 “L” series) 20 to 60 VDC (PD40 “M” series) 30 to 90 VDC (PD40 “H” series) 2.5A (rms) for 24 VDC 1.3A (rms) for 48 VDC 0.84A (rms) for 72 VDC General Efficiency Hold-up time Line Regulation Isolation Voltage • • • • 65% minimum 10 msec ±0.
