CVM75BB160

3 Phase Diode Bridge

CVM75BB160 Features

* Low forward voltage drop

* High surge forward current

* Glass-passivated chips

* Built-In Thyristor Typical Applications

* Welding and Plasma Cutting Machines

* Rectifier in Switch Mode Power Supplies (SMPS)

* Uninterruptible Power Supplies (UPS)

* Motor drives R2

CVM75BB160 Datasheet (123.19 KB)

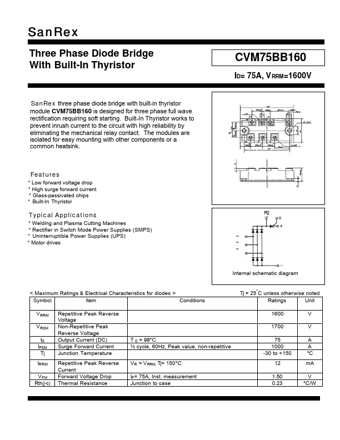

Preview of CVM75BB160 PDF

Datasheet Details

Part number:

CVM75BB160

Manufacturer:

SanRex

File Size:

123.19 KB

Description:

3 phase diode bridge.
SanRex Three Phase Diode Bridge With Built-In Thyristor CVM75BB160 ID= 75A, VRRM=1600V SanRex three phase diode bridge with built-in thyristor modul.
