CVM-60 - Alternating Lights

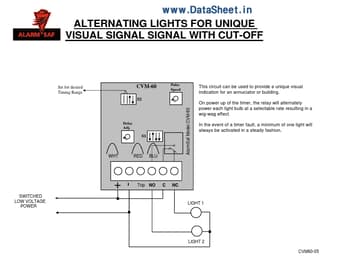

ALTERNATING LIGHTS FOR UNIQUE VISUAL SIGNAL SIGNAL WITH CUT-OFF Set for desired Timing Range CVM-60 S2 Pulse Speed This circuit can be used to provide a unique visual indication for an annuciator or building.

On power up of the timer, the relay will alternately power each light bulb at a selectable rate resulting in a wig-wag effect.

In the event of a timer fault, a minimum of one light will always be activated in a steady fashion.

Delay Adj.

S1 WHT RED BLU + SWITCHED LOW VOLTAGE POWER

CVM60_AlarmSaf.pdf

This datasheet PDF includes multiple part numbers: CVM-60, CVM60. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CVM-60, CVM60

Manufacturer:

Alarm Saf

File Size:

27.94 KB

Description:

Alternating lights.

Note:

This datasheet PDF includes multiple part numbers: CVM-60, CVM60.
Please refer to the document for exact specifications by model.
