DF40AA160 DIODE

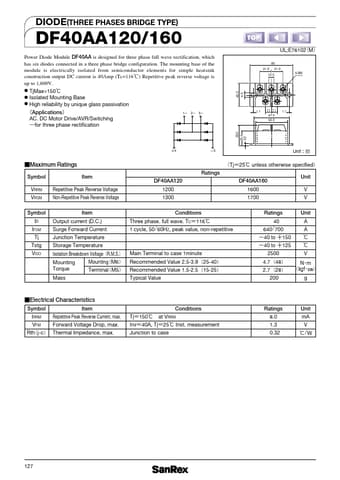

DIODE(THREE PHASES BRIDGE TYPE) DF40AA120/160 Power Diode Module DF40AA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 40Amp (Tc=116ˆ) Repetitive peak reverse voltage is up to 1,600V. ˔ TjMax=150ˆ ˔ Isolated Mounting Base ˔ High reliability by unique glass passivation ʢApplications.

DF40AA120-SanRex.pdf

DF40AA160 Datasheet Preview — This datasheet PDF includes multiple part numbers: DF40AA160, DF40AA120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DF40AA160, DF40AA120

Manufacturer:

SanRex

File Size:

101.78 KB

Description:

Diode.

Note:

This datasheet PDF includes multiple part numbers: DF40AA160, DF40AA120.
Please refer to the document for exact specifications by model.
