DF406, DF401 Datasheet - AMI

DF406 - CMOS Gate Array

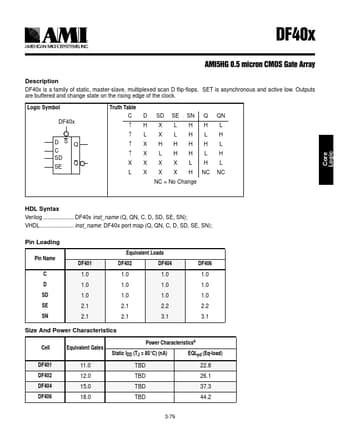

DF40x is a family of static, master-slave, multiplexed scan D flip-flops.

SET is asynchronous and active low.

Outputs are buffered and change state on the rising edge of the clock.

Logic Symbol DF40x DS C SD SE Q Q Truth Table C D SD SE SN Q QN ↑HX LHHL ↑LXLHLH ↑ XHHHH L ↑X LHHLH XXXXLHL L X X X

DF401-AMI.pdf

This datasheet PDF includes multiple part numbers: DF406, DF401. Please refer to the document for exact specifications by model.
