DF414, DF411 Datasheet - AMI

DF414 - CMOS Gate Array

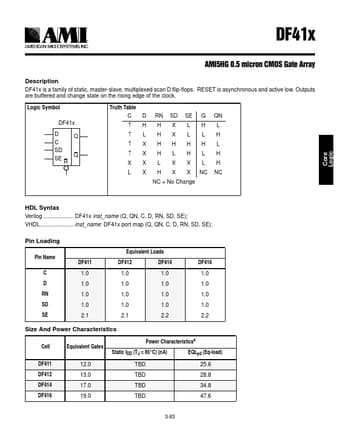

DF41x is a family of static, master-slave, multiplexed scan D flip-flops. RESET is asynchronous and active low. Outputs are buffered and change state on the rising edge of the clock. Logic Symbol DF41x D C SD SE R Q Q Truth Table C D RN SD SE Q QN ↑HHX LHL ↑LHXL LH ↑ XHHHH L ↑XHLHLH XXLXXLH L X.
