DF75LA80 Datasheet - SanRex

DF75LA80 - DIODE

DIODE(THREE PHASES BRIDGE TYPE) DF75LA/LB80/160 Power Diode Module DF75LA/LB is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 75Amp (Tc=101ˆ) Repetitive peak reverse voltage is up to 1600V. ˔ TjMAX==150ˆ ˔ Isolated Mounting Base ʢApplicationsʣ AC. DC Motor Drive/AVR/Switching ʵfor thre.

DF75LA80-SanRex.pdf

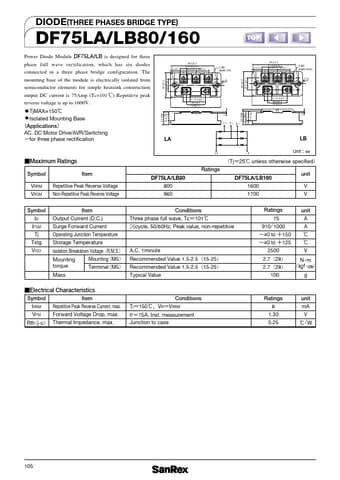

Preview of DF75LA80 PDF
DF75LA80 Datasheet Preview Page 2

Datasheet Details

Part number:

DF75LA80

Manufacturer:

SanRex

File Size:

110.42 KB

Description:

Diode.
