DF75LB160 DIODE

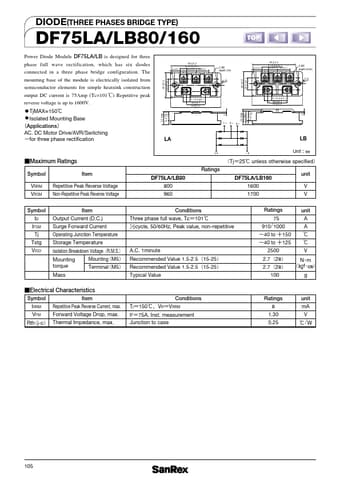

DIODE(THREE PHASES BRIDGE TYPE) DF75LA/LB80/160 Power Diode Module DF75LA/LB is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 75Amp (Tc=101ˆ) Repetitive peak reverse voltage is up to 1600V. ˔ TjMAX==150ˆ ˔ Isolated Mounting Base ʢApplicationsʣ AC. DC Motor Drive/AVR/Switching ʵfor thre.
