DFA150BA Datasheet - SanRex

DFA150BA THYRISTOR + BRIDGE DIODE PHASE-3

3-PHASE DIODE BRIDGE ＋ THYRISTOR DFA150BA DFA150BA is isolated power module designed for the rectification requiring prevention rush current. This module has six diodes connected in 3-phase bridge, and a thyristor connected in series with the DC line. SanRex 〈Advantages〉 Compact 3-phase bridge with prevention rush current Isolated package 〈〉 DFA150BA UL; E76102（M） 〈Applications〉 Inverter for motor control, AC stabilized power supply, SMPS 〈〉 AC DC Unit ：mm Maximum Ratings　 Symbol .

DFA150BA-SanRex.pdf

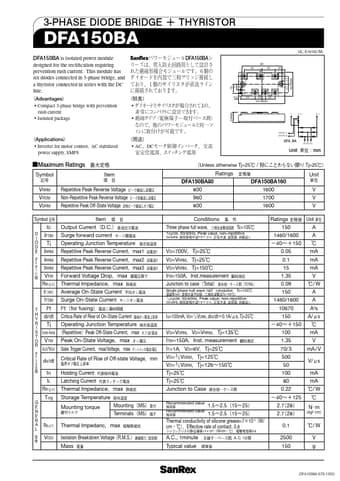

Preview of DFA150BA PDF
DFA150BA Datasheet Preview Page 2

Datasheet Details

Part number:

DFA150BA

Manufacturer:

SanRex

File Size:

303.65 KB

Description:

Thyristor + bridge diode phase-3.
